Shenzhen Grand Musical Instruments Co.,Ltd

Products > Hand Wired Tube Guitar Amp > > 5E3 Fender Style Hand Wired Amp

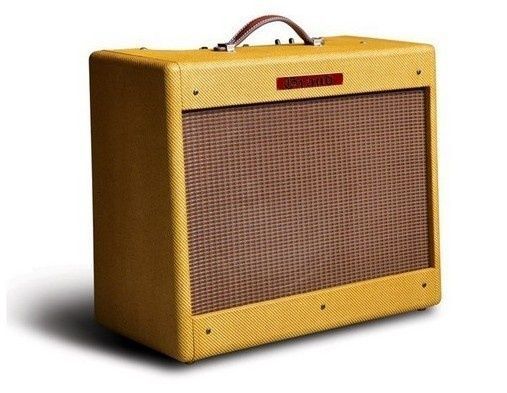

Product name : 5E3 Fender Style Hand Wired Amp
Product No. : G-20
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Hand Wired All Tube Electric Guitar Amp 20W:
A 20W class A guitar amplifier.

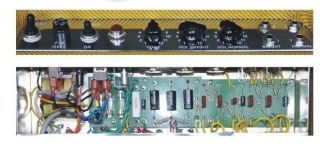

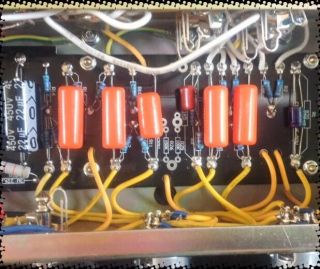

Hand wired turret board construction all tube circuit.
Aube design with point-to-point vintage circuitry. The hand-wired circuitry resonates with a warm vintage tone. This amp uses Ruby tubes.
Finger joined cabinet for increased structural strength.
Genuine tweed amp covering and vintage brown/gold grille cloth. Leather strap handle.
4 inputs: 2 normal and 2 Bright
Volume and Tone controls
20 watts via 2 x 6V6 output tube
2 x 12AX7 preamp tubes
Single 5AR4 vacuum tube rectifier
Dimensions: 51.8x25.1x43(cm)
Weight: 18.2kg

Grand Technology Co.,Ltd is located in Shenzhen, a city full of passion and innovation. There are a number of engineers and musicians in Grand who have rich experience in the electronic acoustic industry. Grand has won 6 patents for electronic drum. Grand pursues high quality product and constant technology innovation. After several years of research and development, Grand designed and produced world-class full mesh head edrums.

The products is adopted with the patent of non-contact sensor system which is fixed on bottom of drum, instead of installed next to the head of drum. This system provides high speed, equalized sound and more accurate response. Besides, with the unique mesh head construction, the elasticity of mesh head is close to real drum head and the dynamic range is large. The mesh head tightness can be adjusted according to different requests. The drum sounds are highly close to acoustic drums.

Grand also developed Drum helper APP. The Drum score can be generated on a PAD when you play drum via wireless connection to module with blue tooth.
The products is adopted with the patent of non-contact sensor system which is fixed on bottom of drum, instead of installed next to the head of drum. This system provides high speed, equalized sound and more accurate response. Besides, with the unique mesh head construction, the elasticity of mesh head is close to real drum head and the dynamic range is large. The mesh head tightness can be adjusted according to different requests. The drum sounds are highly close to acoustic drums.
